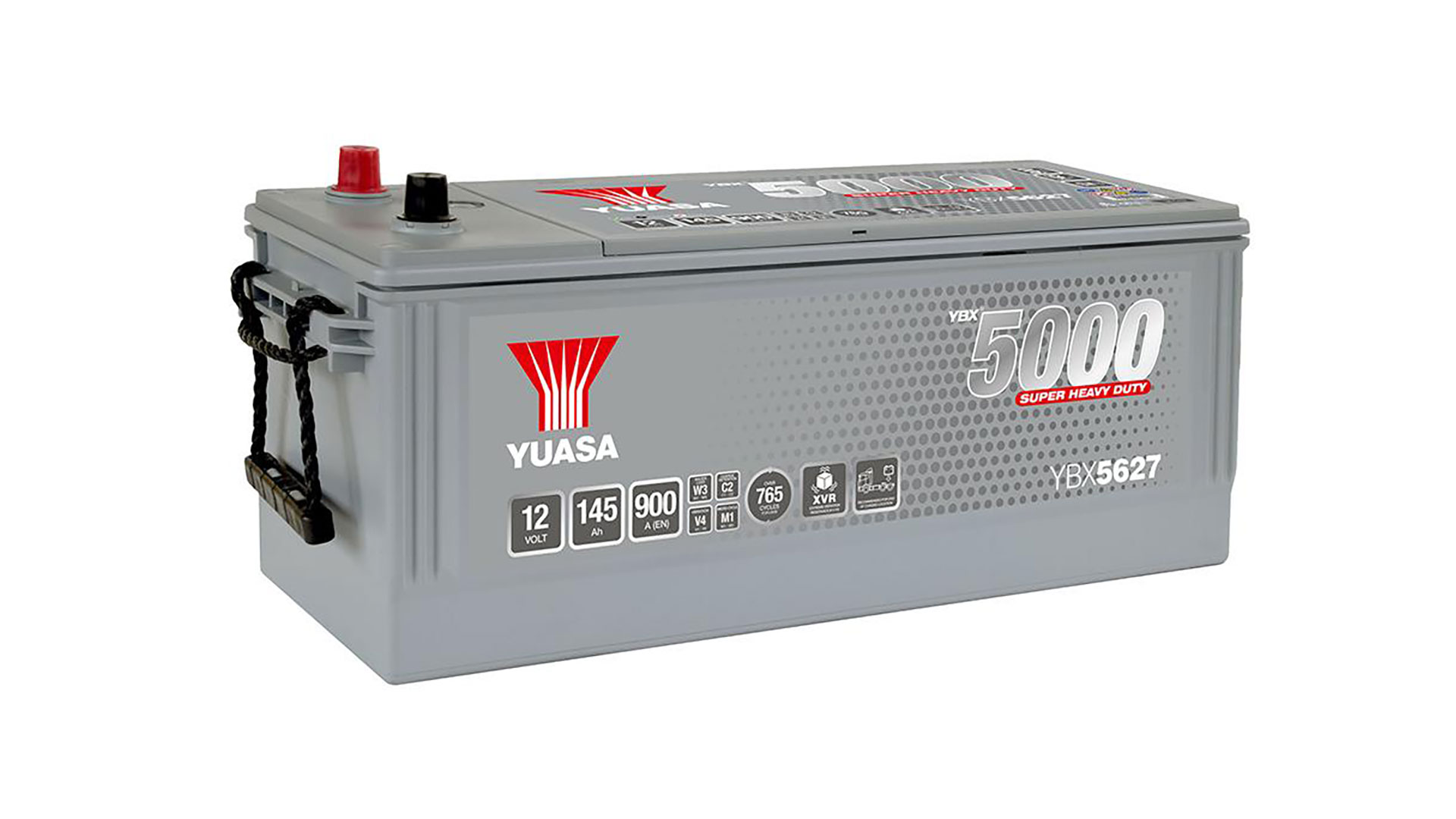

YBX5627 12V 145Ah 900A Yuasa Super Heavy Duty SMF Battery

YBX5627 12V 145Ah 900A Yuasa Super Heavy Duty SMF Battery

YBX5627

  • Product : YBX5627 12V 145Ah 900A Yuasa Super Heavy Duty SMF Battery
  • Code : YBX5627
  • Availability : Available
  • Brand : Yuasa

Capacity at 20-hour Rate (Ah): 145
Cold Cranking Performance (Amps) EN1: 900


Designed for high performance vehicles with high power demands
For regular overnight stays where hotel-loads are applied
XVR Extreme vibration resistance – V4 times 8
M1 Micro-cycle endurance – over 765 cycles (17.5% DOD)
Suitable for end of chassis location
Fully maintenance free with sealed double lid
Enhanced safety features including integrated flame arrestor & end-venting
Lowest self-discharge rate for extended shelf life


Yuasa YBX Super Heavy Duty batteries feature:

Original equipment (OE) quality, performance & specification
Specially designed & constructed for the rigours of commercial, agricultural & plant vehicle applications
Enhanced safety features including integrated flame arrestor & carrying handles.

Yuasa YBX5627 - Technical parameters
Voltage (Volt) 12
Case type DIN A
Capacity Ah (20-HR) 145
Cold Cranking Performance (Amps) EN1 900
Width (mm) 189
Length (mm) 513
Height (mm) 223
Recommended Charge Rate (Amps) 7
Mean Weight with Acid (kg) 37
Endurance M1
Vibration V4
Water Loss W3
Charge Retention C2
End-Venting Yes
State of Charge Indicator Yes
Handles Yes
Terminal Type T1
NCC Class No
